RIDA®Xtract 96
Fully Automated Sample Purification
for up to 96 Samples

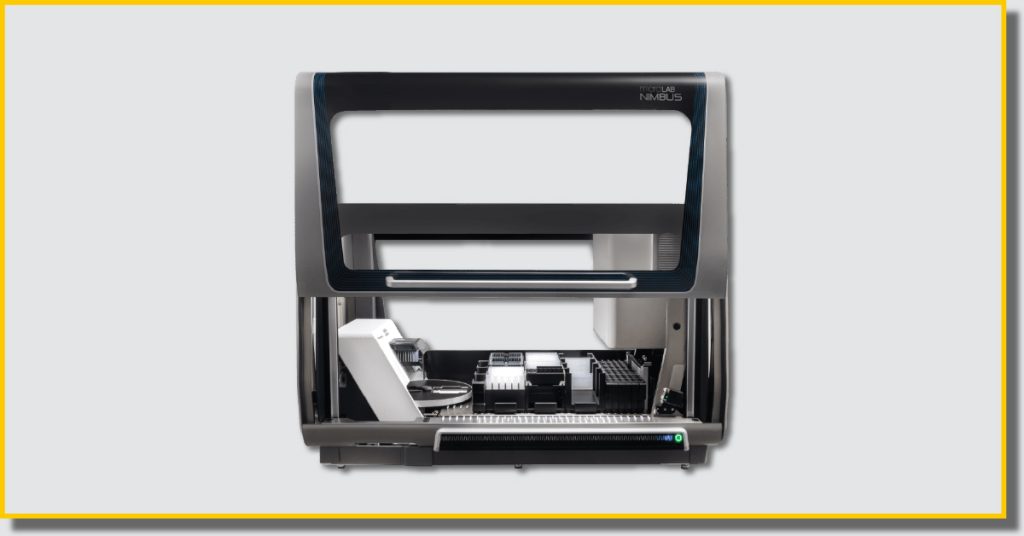

The RIDA®Xtract 96 combines cutting-edge Hamilton robotics with custom-designed Kingfisher Presto technology to provide fully automated, high-throughput sample purification. It can process up to 96 samples in 1 hour 15 minutes, with only 10 minutes of hands-on time.
Its streamlined workflow ensures consistent, high-quality results while optimising laboratory efficiency for demanding diagnostic applications. The system’s robust construction and reliable performance make it ideal for high-volume laboratories where speed and precision are essential.
Its flexible design accommodates a wide range of sample types, while integrated traceability, intuitive software, and automated reporting simplify operation. This combination of automation, versatility, and user-friendly functionality enables laboratories to maintain accuracy, reproducibility, and compliance with minimal intervention.
Features & Benefits
- Use with RIDA®Xtract 96 Comprehensive RNA/DNA Extraction Kits
- Universal extraction – process different sample types at the same time
- Minimal 10 minutes of hands-on time
- Automatic barcode scanning for end-to-end traceability
- Dual-position turntable for parallel processing
Aligned Technology for Unmatched Capability
Combining advanced liquid handling robotics with proven magnetic particle-based technology, the RIDA®Xtract 96 provides reliable, high-throughput nucleic acid extraction with consistently high purity. Its efficient, automated workflow reduces hands-on time, minimises contamination risk, and supports a wide range of sample types for versatile laboratory applications.

Persistent Precision

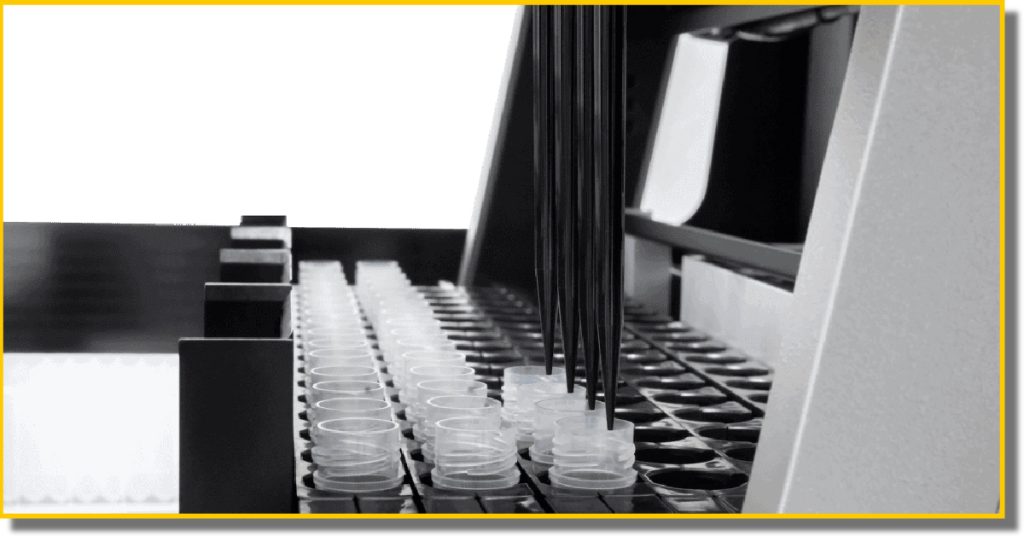

CO-RE® (Compressed O-Ring Expansion) technology delivers maximum accuracy, precision, and reproducibility by preventing tip distortion and aerosol generation during automated pipetting. By maintaining consistent liquid handling, it reduces the risk of cross-contamination and ensures reliable results, even in high-throughput workflows. Its robust design, combined with easy tip attachment and secure sealing, enhances workflow efficiency and makes it ideal for demanding laboratory applications requiring consistent performance, stringent quality control, and minimal manual intervention.

Efficient Parallel Processing

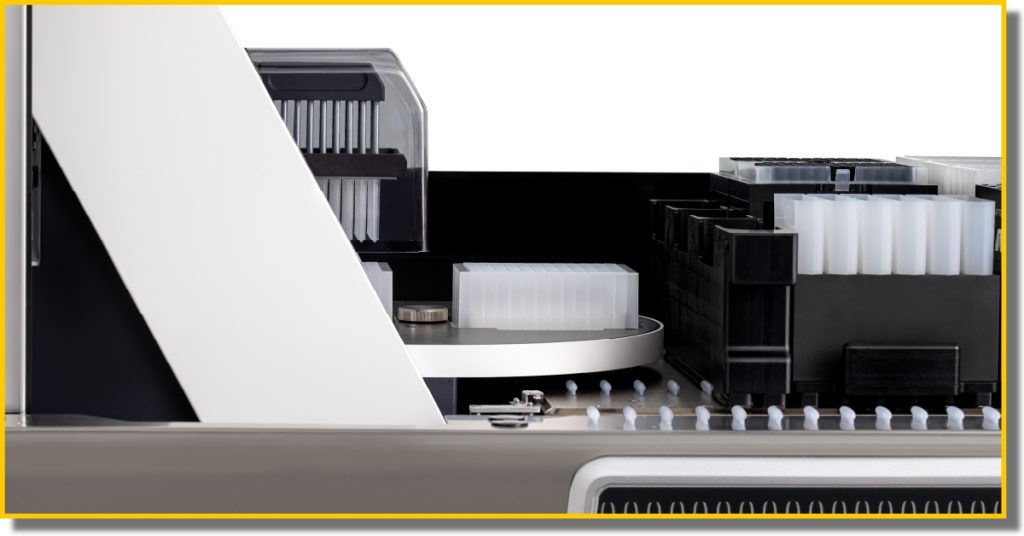

A dual-position turntable allows simultaneous processing of one plate with the magnetic head while another plate is being prepared and transported in readiness for subsequent processing. This design enables the system to operate efficiently, minimising idle time and ensuring that each step of the workflow is optimally coordinated. By allowing parallel processing, laboratories can achieve significantly higher throughput without compromising the quality or consistency of the results. The turntable’s smooth, automated operation also reduces manual handling, lowering the risk of errors or contamination and supporting streamlined, reliable performance across multiple runs.

| Dimensions | 135.9 W x 70.9 D x 88.9 H cm (130 H cm With Door Open) |
| Weight | 136kg (approx.) |
| Total Footprint | 136cm |
| Processing Capacity | 1 – 96 Samples per Run |
| Throughput / 8hr Shift | Up to 384 Samples |
| Total Processing Time | Processing Time 1 hr 15 mins (Includes Automated Sample Aliquoting) |
| Sample Volume | 100 – 300μl |
| Elution Volume | 50 – 200μl |
| Protocols | Preinstalled |
| Power Supply | 110 – 240V, 50/60Hz, 5A |
